Neutral Link MNL-100A

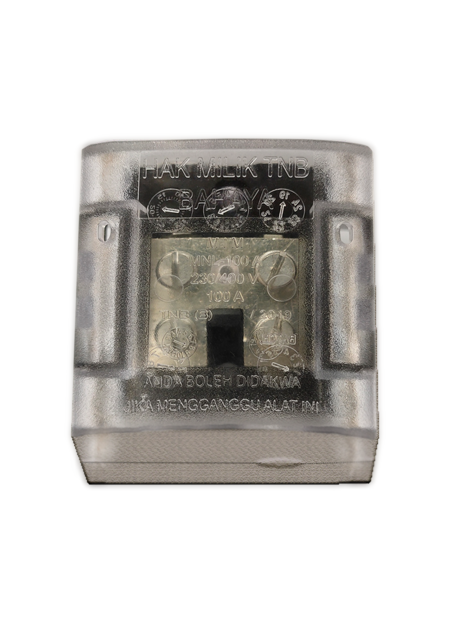

Neutral Link 100A with Transparent Top Housing
Electrical Specification
| Operation | Continuous Operation |
| Rated Operational Voltage | 230/400 V (+10%-6%) |
| Rated Operational Frequency | 50 Hz |
| Rated Operational Current | 100 A |
| Insulation Resistance | >2000 ΜΩ |
| Electric Strength Test | 2 kV |
| Operating Temperature | -5 °C to 55 °C |
| Storage Temperature | -10°C to 70 °C |
| Humidity | Appx 100% RH |
| Dimension | 57mm x 54 mm x 32 mm |
| Weight | 95 g |
Features
- Basic function of Neutral Link is to connect and disconnect neutral line
- Design and contruction of 100A Neutral Link for Indoor use in Tropical Zone
- High quality casing with fire retardant insulating material and UV resistant
- Accommodate PVC/ABC Aluminium conductor from 6mm² to 35mm² stranded aluminium
- Comes with sealing facility to prevent electricity theft
- Tin Plating Terminal Block with indirect pressure pad
- Terminal holes filled with oxide inhibiting compound.
- One slot for incoming and one slot for outgoing.
- Transparent top housing for immediate failure troubleshooting and monitoring.
- Light, durable and robust design.
- Lifetime up to 15 years.
Standard Methodology
- BS 5733:2010+A1:2014 (Specification for general requirements for electrical accessories)
- IEC 60947-1:2007 (Low voltage switchgear and control gear)
- BS 1872:1984 (Electroplated coatings of tin)
